Export RiverFlow2D

Export Tool Icon

Dialog Window

The following dialog is the main interface for configuring and initiating the export process for the RiverFlow2D model. It gathers information about input layers and specific components to be included in the export.

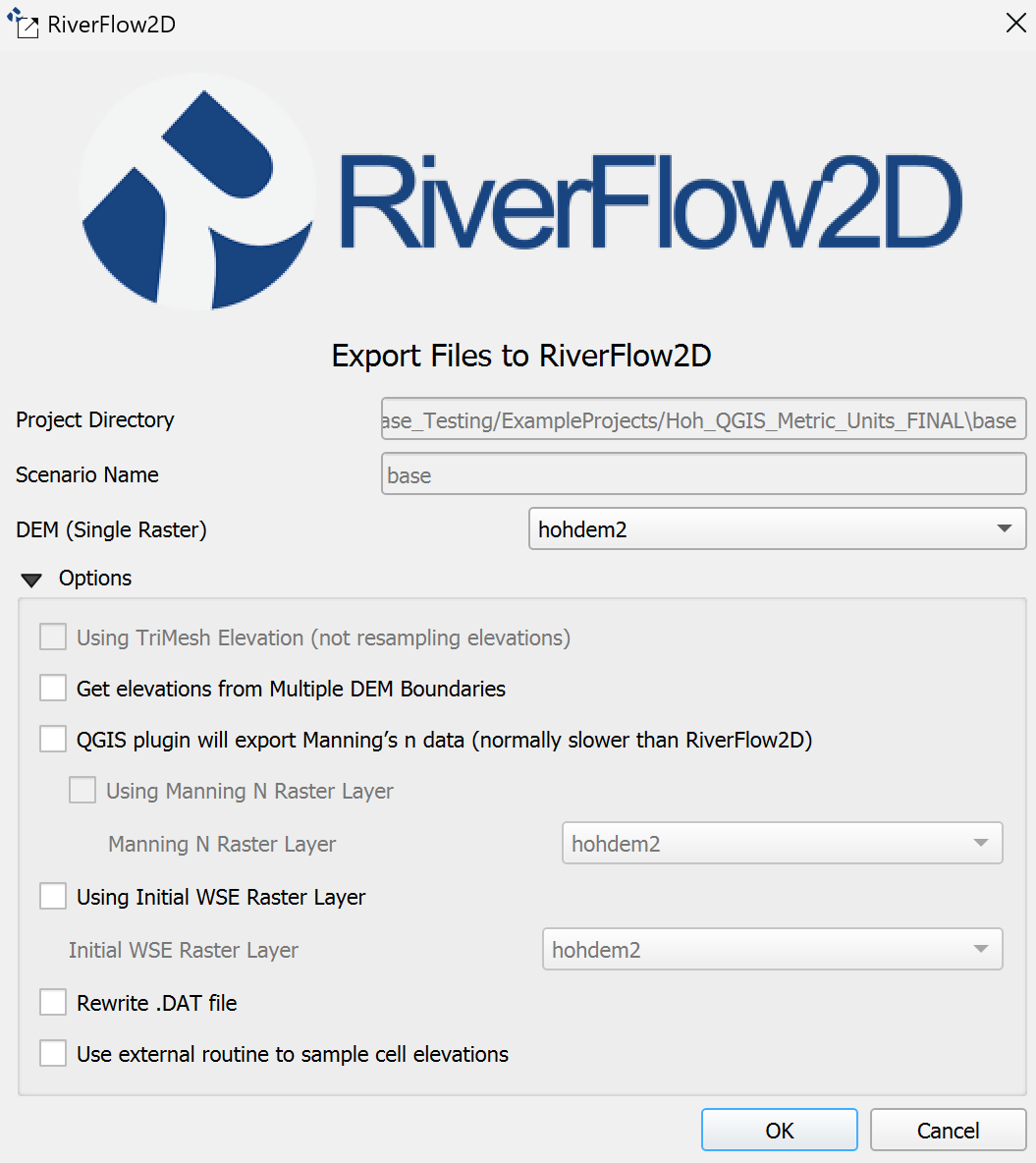

Export Files to RiverFlow2D Dialog.

Dialog Controls

The following table describes the controls available in the Export dialog.

Control Name Type Description
Project Directory Text Field Displays the full path to the current scenario's output directory within the project. (Read-only)
Scenario Name Text Field Displays the name of the current scenario being exported. (Read-only)
DEM (Single Raster) Dropdown Select the single raster layer representing the bed topography/elevation. Enabled only if neither 'Using TriMesh Elevation' nor 'Get elevations from Multiple DEM Boundaries' is active. Populated with available raster layers.
Using TriMesh Elevation (not resampling elevations) Checkbox Enable to use elevation data directly from the 'TriMesh' layer vertices/nodes instead of resampling from a DEM raster. Disables DEM selection options. Automatically checked if mesh was generated using \"Generate TriMesh with Elevation\" tool.
Get elevations from Multiple DEM Boundaries Checkbox Enable to use elevation data based on boundaries defined in a 'MultipleDemBoundaries' layer. Disables the 'DEM (Single Raster)' dropdown. Requires the 'MultipleDemBoundaries' layer to be present.
Using Manning N Raster Layer Checkbox Enable to use Manning's n values sampled from a selected raster layer instead of a vector layer. Enables the 'Manning N Raster Layer' dropdown.
Manning N Raster Layer Dropdown Select the raster layer containing Manning's n values. Enabled only when 'Using Manning N Raster Layer' is checked. Populated with available raster layers.
Using Initial WSE Raster Layer Checkbox Enable to use initial water surface elevation (WSE) values sampled from a selected raster layer. Enables the 'Initial WSE Raster Layer' dropdown.
Initial WSE Raster Layer Dropdown Select the raster layer containing initial WSE values. Enabled only when 'Using Initial WSE Raster Layer' is checked. Populated with available raster layers.
Rewrite .DAT file Checkbox Enable to force regeneration and overwriting of the main RiverFlow2D control file ('.dat').
Use external routine to sample cell elevations Checkbox Enable to use the external executable ('ASCIISamplingC.exe') for sampling elevation values for mesh cells/centroids. This might be faster or handle large datasets differently than the internal QGIS methods.
OK Button Confirms the selections and initiates the export process based on the chosen options and detected layers.
Cancel Button Closes the dialog without exporting any files.

Workflow

The typical workflow for using the Export Files to RiverFlow2D tool is as follows:

  1. Ensure all required input layers (e.g., 'TriMesh', 'Manning N'/'Nr'/'Nz', optional layers like 'Boundary Conditions', 'Weirs', 'Bridges', DEM rasters etc.) are loaded into the QGIS project and meet the requirements (See Section 2.1.4). Make sure the 'Domain Outline' layer, if present, is not in editing mode.

  2. Activate the tool from the RiverFlow2D plugin menu or toolbar. This will open the Export Files to RiverFlow2D dialog (Figure 2.2).

  3. Verify that the Project Directory and Scenario Name are correctly displayed, reflecting the current project and active scenario.

  4. Click OK to start the export process, or alternately if you need to set additional parameters, review the Options group box.

  5. (Optional) Configure if Manning's roughness data should be sourced from a raster layer.

  6. (Optional) Select the checkbox to use a raster for Initial Water Surface Elevation.

  7. (Optional) Decide whether to use the external elevation sampling routine and whether to force rewriting the '.dat' file.

  8. Click OK.

  9. The tool performs requirement checks (e.g., layer existence, CRS compatibility, empty layers).

  10. If checks pass, the tool proceeds with the export. It creates a centroids layer, samples necessary data (elevation, roughness, initial WSE) based on the selected options, and exports various component files ('.TGates', '.TWeirs', '.TBridges', '.TDams', '.THydnet', '.OBC', etc.) based on the presence of corresponding layers in the QGIS project (e.g., 'Gates', 'Weirs', 'Bridges', 'DamBreach', 'Channels1D', 'Boundary Conditions', etc.).

  11. Finally, it generates the primary model input files: the geometry/mesh file ('.fed') and the control data file ('.dat'). Other auxiliary files like '.plt' and '.qgisunits' may also be created.

  12. All exported files are saved in a subdirectory named after the current scenario within the main project directory. A confirmation message will appear upon successful completion, or error messages will be shown if issues occur.

Requirements

Before using the Export tool, ensure the following requirements are met:

  • A QGIS project must be loaded.

  • The project must have a defined current scene (scenario). This determines the output subdirectory and file naming.

  • A mesh layer named 'TriMesh' must be present and active in the layer panel. This provides the core mesh geometry.

  • At least one Manning's roughness source must be available and active: either a vector layer named 'Manning N' or raster layers named 'Manning Nr' or 'Manning Nz'.

    • Having both 'Manning N' (vector) and 'Manning Nz' (raster) active simultaneously is not allowed.

    • Having both 'Manning N' (vector) and 'Manning Nr' (raster) active simultaneously is not allowed.

  • All layers must not be in editing mode. Save any edits and toggle editing off for this layer before exporting.

  • If the option 'Get elevations from Multiple DEM Boundaries' is to be used, a layer named 'MultipleDemBoundaries' must be present.

  • All relevant input layers (mesh, DEMs, roughness sources, component layers) must have compatible Coordinate Reference Systems (CRS).

  • Active input layers should not be empty (contain no features or valid data).

Failure to meet these requirements will likely result in error messages displayed in the QGIS message bar and prevent the export from completing.

Technical Details

  • The primary output files generated are the model's mesh/geometry file ('.fed') and the main input control data file ('.dat'). A plot data file ('.plt') and a units file ('.qgisunits') are also typically generated.

  • Numerous other component-specific input files are generated conditionally, based on the presence of layers with specific names in the QGIS project. These include: .dOut ('Domain Outline'), .TGates ('Gates'), .IRT ('InternalRatingTable'), .TWeirs ('Weirs'), .TDams ('DamBreach'), .TBridges ('Bridges'), .THydnet ('Channels1D'), .OBC/.OBCP ('Boundary Conditions'), .OBS ('Observation Points'), .source ('Sources'), .scour ('ScourFromPiers', 'ScourFromAbutment'), .lswmm ('LSWMM'), .MannN/.MannN2 ('Manning N' vector/raster), .Linf/.Lrain/.Wind/.initConc (Related infiltration, rain, wind, initial concentration layers).

  • All exported files are saved within a subdirectory named after the current project scene (scenario name), located within the main project directory identified in the dialog.

  • A temporary centroids layer is created during the process using centroide_layer().

Export Plastic/Particle Transport File

This dialog allows the user to configure and export the necessary input file for running plastic or particle transport simulations within RiverFlow2D.

Dialog Window

Export Plastic/Particle Transport File Dialog.

Dialog Controls

The following table describes the controls available in the Export Plastic/Particle Transport File dialog.

Control Name Type Description
Compute Degradation Checkbox Enable the degradation process simulation.
Compute Shoreline Checkbox Enable the shoreline interaction simulation.
SimulationTime (hr) Text Field Enter the total simulation duration in hours.
Output Interval (hr) Text Field Enter the time interval for writing output results in hours.
Time Step (sec) Text Field Enter the simulation time step in seconds.
Velocity Field Path Text Field (Read-only) Displays the path to the directory containing the velocity field data (typically the current scenario directory).
Wind Velocity File Text Field Enter the name of the file containing wind velocity data. Use the browse button to select.
... (Browse) Button Opens a file dialog to select the Wind Velocity File.
OK Button Confirms the settings and initiates the export process.
Cancel Button Closes the dialog without exporting the file.

Workflow

The typical workflow for using the Export Plastic/Particle Transport File tool is as follows:

  1. Ensure the required 'ParticleTransport' point layer is loaded into the QGIS project and meets the requirements (See Section 2.2.4). The attributes of this layer define the spill locations and properties.

  2. Ensure the main RiverFlow2D simulation files (especially .dat) have already been exported for the current scenario using the main export tool (Section 2.1).

  3. Activate the tool from the RiverFlow2D plugin menu or toolbar (usually under a submenu like 'Modules' or similar).

  4. The Export Plastic/Particle Transport File dialog opens (Figure 2.3).

  5. Check or uncheck the 'Compute Degradation' and 'Compute Shoreline' options as required for the simulation.

  6. Enter the desired 'SimulationTime', 'Output Interval', and 'Time Step'. These values may be pre-populated from previous settings.

  7. Verify the 'Velocity Field Path' is correct (it should point to the current scenario directory).

  8. Enter the filename for the 'Wind Velocity File' or use the browse button ('...') to select it. This file must exist in the scenario directory.

  9. Click OK.

  10. The tool performs requirement checks (e.g., layer existence, CRS compatibility, non-empty control fields).

  11. If checks pass, the tool generates the Particle Transport Model file ( texttt.PTM) in the current scenario directory using data from the dialog and the 'ParticleTransport' layer attributes.

  12. The tool then reads the existing .dat file for the scenario, updates a specific flag to indicate particle transport is active (flag set to 4), and rewrites the .dat file.

  13. The RiverFlow2D executable (specifically RiverFlow2DDIP.exe) is optionally launched automatically using the generated files.

  14. A confirmation or error messages will be shown in the QGIS message bar.

Requirements

Before using the Export Plastic/Particle Transport File tool, ensure the following requirements are met:

  • A QGIS project must be loaded with a defined current scene (scenario).

  • The main RiverFlow2D export (Section 2.1) must have been run previously for the current scenario, creating the necessary base files like .dat.

  • A point vector layer named 'ParticleTransport' must be present and active in the layer panel. This layer must contain features representing the spill locations and have the specific attributes required by the model (e.g., density, size, timing, dispersion, degradation file links).

  • The 'ParticleTransport' layer must not be empty.

  • All layers involved must have compatible Coordinate Reference Systems (CRS). The tool performs a check.

  • The required input fields in the dialog (SimulationTime, Output Interval, Wind Velocity File) must not be empty.

Failure to meet these requirements will result in error messages and prevent the export from completing.

Technical Details

  • The primary output file generated by this tool is the Particle Transport Model input file ( texttt.PTM).

  • The tool modifies the existing main control data file ( texttt.dat) by rewriting it ( textttrewriteDAT()) with a specific flag (index 15) set to 4 to enable the particle transport module in the model engine.

  • The .PTM file is generated by the model, which reads control data from the dialog and detailed spill information from the attributes of the 'ParticleTransport' layer features.

  • The automatically launches the Hydronia Data Input Program  using the generated .PTM and modified .dat files.
